traefik-forward-auth	A How To Guide for Traefik Forward Auth

:::note

We highly recommend to setup authelia instead.

:::

This chart makes it possible to have a layer of security in front of your publicly exposed charts. It supports Google, OIDC, and generic OAuth2. Please read the GitHub README of the original project for your authentication options.

:::note

Generally, phone apps do not support redirection during their authentication flow, so this middleware is more suitable for protecting portals that you would access through a browser.

:::

A standard setup (auth host mode)

This method will add a middleware to the traefik instance with Google authentication which then you can apply on any charts with either subdomain or path prefix Ingress rules. The example domain will be https://example.com which should be substituted to your externally accessible domain name.

Setting up traefik-forward-auth

Follow this steps here to setup Google developer console. Assuming you have set up the Client ID for Web application in the Google developer console and set the Authorized redirect URIs to https://auth.example.com/_oauth, start deploying traefik-forward-auth.

Most important details to configure:

• Setup ingress to auth.example.com
• Set a secret (it's mandatory, but can be any string of your choosing).
• Set authHost to auth.example.com.
• Add your email to whitelist as array.
• Add your root domain to cookieDomain
• Set the clientId and clientSecret to the ones presented on the developer console.
• prompt needs to be set empty.
• As it is a stateless program, it doesn't need any special permissions or storage.

// values.yaml
ingress:
  main:
    enabled: true
    hosts:
      - host: auth.${DOMAIN}
    integrations:
      traefik:
        enabled: true
      certManager:
        enabled: true
        certificateIssuer: cloudflare

tfaAppOptions:
  secret: something-random

tfaAuthOptions:
  authHost: auth.${DOMAIN}
  urlPath: /_oauth
  defaultAction: auth
  defaultProvider: google
  whitelist:
    - ${EMAIL1}
    - ${EMAIL2}
    - ${EMAIL3}

tfaCookieOptions:
  cookieDomain:
    - ${DOMAIN}

tfaGoogleOptions:
  clientId: ${GOOGLE_CLIENTID}
  clientSecret: ${GOOGLE_SECRET}
  prompt: ""

Creating the middleware on traefik

The traefik instance has to be made aware of the forward authentication. Edit in traefik configuration:

• Add to websecure entrypoint and enable Accept forwarded headers.
• Add your default gateway (internal router IP) to Trusted IPs if using hairpin NAT. If you are using DNS override for your domain name, you can probably skip this part.

service:
  tcp:
    loadBalancerIP: ${IP_TRAEFIK}
    ports:
      websecure:
        forwardedHeaders:
          enabled: true
          trustedIPs:
            - 192.168.1.1

• Add the correct middleware

middlewares:
  forwardAuth:
    - name: auth
      address: http://traefik-forward-auth.traefik-forward-auth:4181/_oauth
      authResponseHeaders:
        - X-Forwarded-User
      trustForwardHeader: true

Applying the middleware on charts

To actually use the forward authentication, you have to add it to either a chain or by itself to existing charts Ingresses.

ingress:
  main:
    enabled: true
    hosts:
      - host: chart.${DOMAIN}
    integrations:
      traefik:
        enabled: true
        middlewares:
          - name: auth
            namespace: traefik

Per-chart whitelist

In case you need per-chart whitelists, you have two options: set up multiple instances of traefik-forward-auth (cumbersome) or use custom rules. Consult the readme of the original project how to set them.

Testing

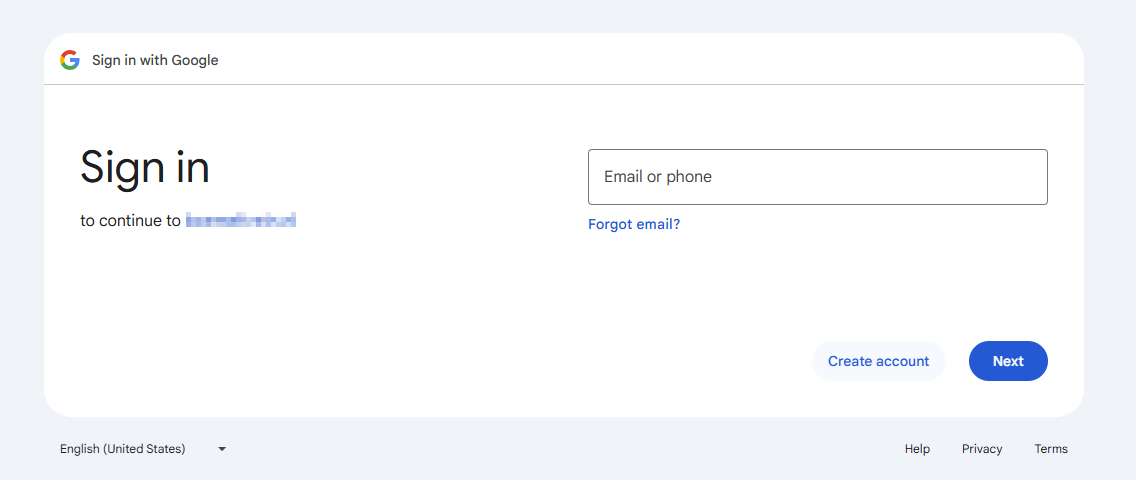

Opening your URL should result in being redirected to Google authentication. Subsequent checks if the auth is working can be made by opening an incognito window.
